Products Details

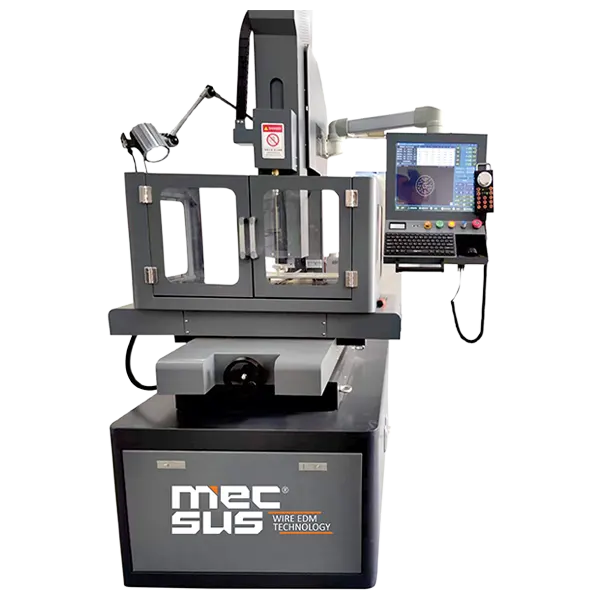

CNC EDM Drill

A high-precision, computer-controlled machine used for drilling small, deep, and accurate holes in hard materials. It uses electrical discharges instead of mechanical force, ideal for aerospace, medical, and tool & die industries.

Download Brochure

Machine Specs

ITEM	UNIT
X/Y Workbench Dimensions	380 x 500 mm
X/Y/Z axis machining stroke	350x450x450 mm
Machine dimensions	1250x1400x2100 mm
Spindle servo stroke	360 mm
Maximum load	300 kg
Clamping electrode diameter	􀀀Ø0.3~Ø3.0 mm
Maximum processing current	30A
Machine power	3.6 (KVA)
Maximum perforation speed	30-60 mm/min(depending on material )
Maximum perforation thickness	400 mm
positioning accuracy	≤±0.02 mm (100mm)
Minimum movement equivalent of workbench	0.001 mm
Working fluid tank capacity	25L
Machine weight	500kg
Three axis control form	Numerical control
Three axis drive form	Subdivision hybrid motor
XYZ three-axis guide rail	Linear guide rail
Handheld unit	Manual control box
Digital display	3 axis digital display
