Products Details

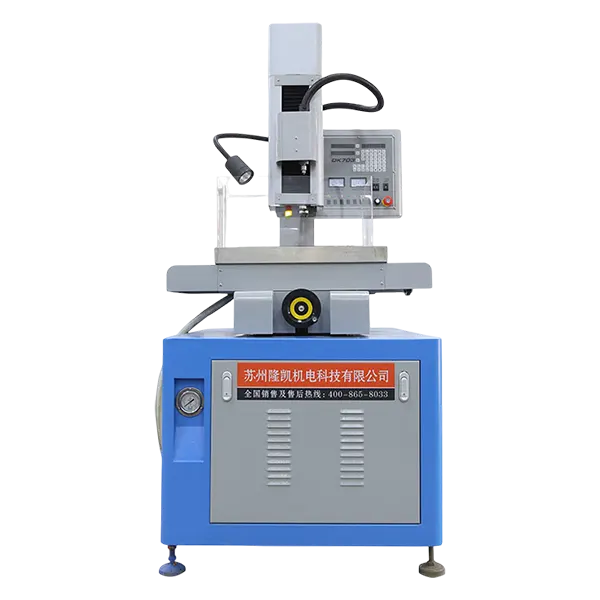

Manual EDM Drill

An entry-level EDM drilling machine operated manually, suitable for small workshops. It provides accurate hole drilling in conductive materials but requires operator skill and is less automated compared to CNC EDM drills

Download Brochure

Machine Specs

ITEM	UNIT	D704
Electrode diameter	mm	Ø0.3~Ø3.0
Spindle stroke	mm	280
Stroke of spindle servo	mm	300
Max spindle speed	mm/mm	120
C axis speed	rpm	20-30
Worklable size	mm	320x430
X-Y stroke	mm	300x400
Max distance from guider to table	mm	330
Height of worktable	mm	920
Max working current	A	30
max input power	kw	3
Power supply	V/Hz	3N~380V/50HZ
Max work fluid pressure	Mpa	6
Machine size (LxWxH)	mm	1000x1000x1950
Weight	Kg	600
